ISQ201 - (ISQ201 - ISQ204) HIGH DENSITY PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS

ISOCOM COMPONENTS

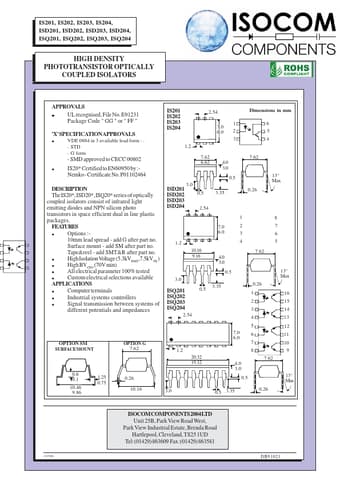

ISQ201 Datasheet Preview — Preview of ISQ201 PDF

Datasheet Details

Part number	ISQ201
Manufacturer	ISOCOM COMPONENTS
File Size	73.16 KB
Description	(ISQ201 - ISQ204) HIGH DENSITY PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS
Datasheet	ISQ201_ISOCOMCOMPONENTS.pdf

ISQ201 Product details

Description

The IS20 , ISD20 , ISQ20 series of optically coupled isolators consist of infrared light emitting diodes and NPN silicon photo transistors in space efficient dual in line plastic packages.

Features

l Options :10mm lead spread - add G after part no. Surface mount - add SM after part no. Tape&reel - add SMT&R after part no. l High Isolation Voltage (5.3kVRMS ,7.5kVPK ) l High BVCEO (70V min) l All electrical parameter 100% tested l Custom electrical selections available.
