Description
3.9
Dimensions in mm
8 7 6 5
7.62
6.4
ISDA20
1 2 3 4
1 2 3 7.62
6 5 4
9.78 3.4

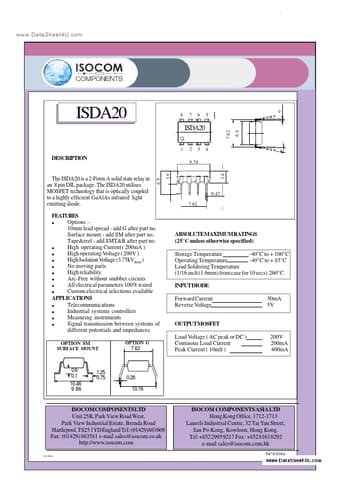

The ISDA20 is a 2-Form A solid state relay in an 8 pin DIL package.The ISDA20 utilises MOSFET technology that is optically coupled to a highly efficient GaAlAs infrared light emitting diode.6.9
0.47 7.62
Features
- l Options :10mm lead spread - add G after part no. Surface mount - add SM after part no. Tape&reel - add SMT&R after part no. l High operating Current ( 200mA ) l High operating Voltage ( 200V ) l High Isolation Voltage (3.75kVRMS ) l No moving parts l High reliability l Arc-Free without snubber circuits l All electrical parameters 100% tested l Custom electrical selections available.
