Description
2.0

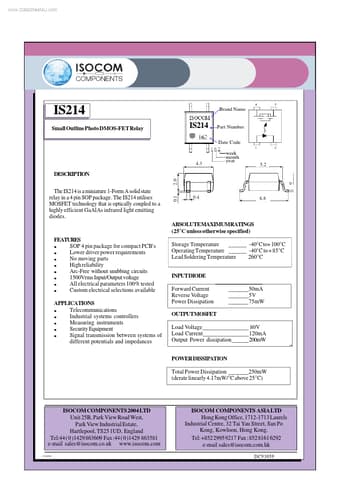

The IS214 is a miniature 1-Form A solid state relay in a 4 pin SOP package.The IS214 utilises MOSFET technology that is optically coupled to a highly efficient GaAlAs infrared light emitting diodes.0.1
0.4
6.8
ABSOLUTEMAXIMUMRATINGS (25°C unless otherwise specified)
Features
- l SOP 4 pin package for compact PCB's l Lower driver power requirements l No moving parts l High reliability l Arc-Free without snubbing circuits l 1500Vrms Input/Output voltage l All electrical parameters 100% tested l Custom electrical selections available.
