CNY17F-1X - NON-BASE LEAD OPTICALLY COUPLED ISOLATOR PHOTOTRANSISTOR

ISOCOM COMPONENTS

📥 Download Datasheet

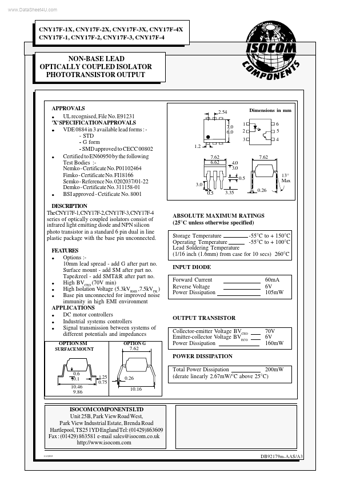

CNY17F-1X Datasheet Preview — Preview of CNY17F-1X PDF

Datasheet Details

Part number	CNY17F-1X
Manufacturer	ISOCOM COMPONENTS
File Size	93.14 KB
Description	NON-BASE LEAD OPTICALLY COUPLED ISOLATOR PHOTOTRANSISTOR
Datasheet	CNY17F-1X_ISOCOMCOMPONENTS.pdf

CNY17F-1X Product details

Description

TheCNY17F-1,CNY17F-2,CNY17F-3,CNY17F-4 series of optically coupled isolators consist of infrared light emitting diode and NPN silicon photo transistor in a standard 6 pin dual in line plastic package with the base pin unconnected.

Features

Options :10mm lead spread - add G after part no. Surface mount - add SM after part no. Tape&reel - add SMT&R after part no. l High BVCEO (70V min) l High Isolation Voltage (5.3kVRMS ,7.5kVPK ) l Base pin unconnected for improved noise immunity in high EMI environment.
