SW7201 I2C Buck-Boost Charge-Discharge Controller

SW7201 Description

SW7201 I2C Buck-Boost Charge-Discharge Controller I2C High-efficiency Bidirectional Buck-Boost Charge-Discharge Controller 1..
SW7201 is a high-efficiency synchronous 4-transistor bidirectional buck-boost chargedischarge controller that supports the charge-discharge management.

SW7201 Features

* High-efficiency Buck-boost Charger
* Support buck-boost charging of 1 to 4 cells battery
* Support 3V-19.2V charging target voltage setting
* Support 100W input power
* Support 4V-24V input voltage
* Support I2C programming to control input/battery c

SW7201 Applications

* Power Banks
* Power Tools
* Industrial Equipment

📥 Download Datasheet

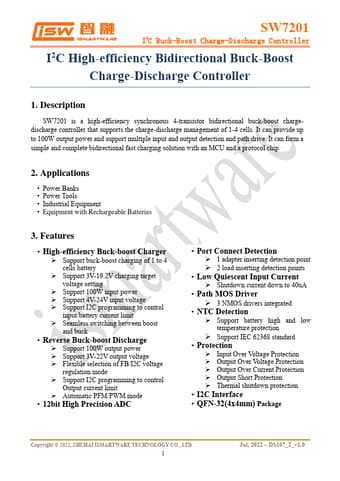

Preview of SW7201 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SW7201
Manufacturer
ISMARTWARE
File Size
0.96 MB
Datasheet
SW7201-ISMARTWARE.pdf
Description
I2C Buck-Boost Charge-Discharge Controller
