IQXO-71 - Crystal Clock Oscillator

Description

Surface mount oscillator in a ceramic package with a hermetically sealed metal lid Fast Make capability: CFPP-73 series programmable oscillators are the nearest equivalent fast make model Frequency Parameters Frequency Frequency Stability Ageing 12.0kHz to 170.0MHz ±25.00ppm to ±100.00ppm ±5ppm ma

📥 Download Datasheet

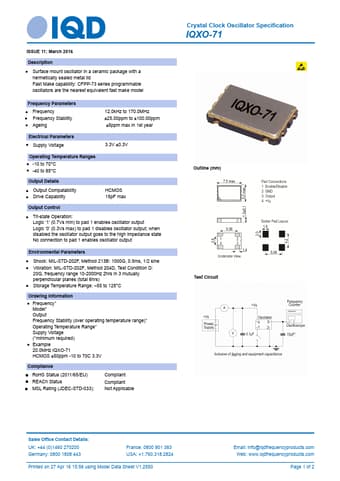

IQXO-71 crystal clock oscillator by IQD - Datasheet Preview

Datasheet Details

Part number	IQXO-71
Manufacturer	IQD
File Size	742.30 KB
Description	Crystal Clock Oscillator
Datasheet	IQXO-71 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
IQXO-71	SURFACE MOUNT SPXOs	ETC
IQXO-70	SURFACE MOUNT SPXOs	ETC
IQXO-35	Industrial Oscillator	ETC
IQXO-36	Industrial Oscillator	ETC
IQXO-53	SMD CLOCK OSCILLATORS	ETC

Other Datasheets by IQD

Part Number	Description
IQXO-70	Crystal Clock Oscillator
IQXO-740	Crystal Clock Oscillator
IQXO-741	Crystal Clock Oscillator
IQXO-791	Crystal Clock Oscillator
IQXO-793	Crystal Clock Oscillator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

ISSUE 11; March 2016 Description Surface mount oscillator in a ceramic package with a hermetically sealed metal lid Fast Make capability: CFPP-73 series programmable oscillators are the nearest equivalent fast make model Frequency Parameters Frequency Frequency Stability Ageing 12.0kHz to 170.0MHz ±25.00ppm to ±100.00ppm ±5ppm max in 1st year Electrical Parameters Supply Voltage 3.3V ±0.3V Operating Temperature Ranges -10 to 70°C -40 to 85°C Output Details Output Compatability Drive Capability HCMOS 15pF max Output Control Tri-state Operation: Logic ‘1’ (0.7Vs min) to pad 1 enables oscillator output Logic ‘0’ (0.
