CXOXULP - Crystal Clock Oscillator

Product Overview

Datasheet Details

Part number	CXOXULP
Manufacturer	IQD
File Size	199.04 KB
Description	Crystal Clock Oscillator
Datasheet	CXOXULP Datasheet

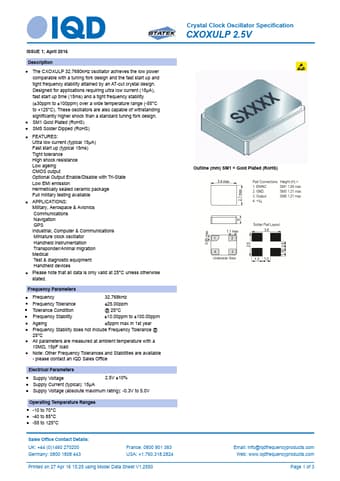

Additional preview pages of the CXOXULP datasheet.

Product details

Description

The CXOXULP 32.7680kHz oscillator achieves the low power comparable with a tuning fork design and the fast start up and tight frequency stability attained by an AT-cut crystal design.Designed for applications requiring ultra low current (15µA), fast start up time (15ms) and a tight frequency stability (±30ppm to ±100ppm) over a wide temperature range (-55°C to +125°C).These oscillators are also capable of withstanding significantly higher shock than a standard tuning fork design.SM1 Gold Plat

Features

Ultra low current (typical 15μA) Fast start up (typical 15ms) Tight tolerance High shock resistance Low ageing CMOS output Optional Output Enable/Disable with Tri-State Low EMI emission Hermetically sealed ceramic package Full military testing available.
