FTD06N03NA - N-Channel MOSFET

Features

  • RoHS Compliant.
  • Low ON Resistance.
  • Low Gate Charge.
  • Peak Current vs Pulse Width Curve.
  • Inductive Switching Curves Ordering Information PART NUMBER.

📥 Download Datasheet

Datasheet Details

Part number FTD06N03NA
Manufacturer IPS
File Size 234.15 KB
Description N-Channel MOSFET
Datasheet download datasheet FTD06N03NA Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FTD01N60 600V N-Channel MOSFET ark
FTD01N60G 600V N-Channel MOSFET ark
FTD04N60 600V N-Channel MOSFET ark
FTD04N60A 600V N-Channel MOSFET ark
FTD04N60B 600V N-Channel MOSFET ark

Other Datasheets by IPS

Part Number Description
FTD03N03N N-Channel MOSFET
FTD05N03NA N-Channel MOSFET
FTD09N20R N-Channel MOSFET
FTD150N10N N-Channel MOSFET
FTD18N20R N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

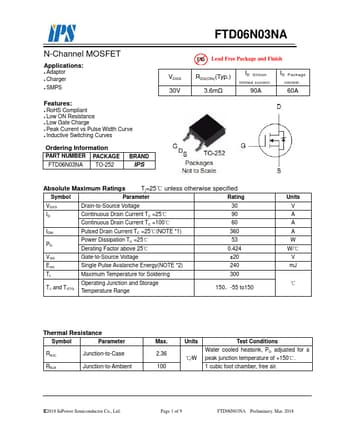

N-Channel MOSFET Applications: ● Adaptor ● Charger ● SMPS Features: ● RoHS Compliant ● Low ON Resistance ● Low Gate Charge ● Peak Current vs Pulse Width Curve ● Inductive Switching Curves Ordering Information PART NUMBER PACKAGE FTD06N03NA TO-252 BRAND IPS FTD06N03NA VDSS 30V Lead Free Package and Finish RDS(ON)(Typ.) 3.6mΩ ID（ Silicon limited current） 90A ID（ Package limited） 60A Absolute Maximum Ratings Tj=25℃ unless otherwise specified Symbol Parameter Rating VDSS ID IDM PD VGS Drain-to-Source Voltage Continuous Drain Current TC =25℃ Continuous Drain Current TC =100℃ Pulsed Drain Current TC =25℃(NOTE *1) Power Dissipation TC =25℃ Derating Factor above 25℃ Gate-to-Source Voltage 30 90 60 360 53 0.
