ICM7245 - 8-Character 16-Segment Microprocessor Compatible LED Display Decoder Driver

Description

SIGNAL D0 - D5 CS WR MODE PIN 4 thru 9 10 13 29 6-Bit ASCll Data input pins (active high).

Chip Select from µP address decoder, etc.

WRite pulse input pin (active low).

Features

  • Single supply +3.3V operation.
  • 16-Segment fonts with decimal point.
  • Up to 8 character display driver.
  • Has internal pull-up resistors of 136Ω Typical.
  • Microprocessor compatible.
  • Directly drives LED common cathode displays.
  • Cascadable without additional hardware.
  • Standby feature turns display off; puts chip in low power mode.
  • Sequential entry or random entry of data into display.
  • Character and segment driver.

📥 Download Datasheet

📁 Similar Datasheet

  • ICM7240 - Fixed And Programmable Timer/Counters (Maxim Integrated Products)
  • ICM7242 - Long Range Fixed Timer (Intersil Corporation)
  • ICM7242 - Fixed And Programmable Timer/Counters (Maxim Integrated Products)
  • ICM7242 - Long Range Fixed Timer (Renesas)
  • ICM7243 - LED Display Decoder Driver (Intersil Corporation)
  • ICM7249 - Micro-Power Event/Hour Meter (Intersil Corporation)
  • ICM7206 - CMOS Touch Tone Encoder (Intersil Corporation)
  • ICM7207 - CMOS Timebase Generator (Harris Semiconductor)
  • ICM7207 - CMOS Timebase Generator (Intersil Corp)
  • ICM7207A - CMOS Timebase Generator (Harris Semiconductor)
Other Datasheets by INTERSIL
  • ICM7207A - CMOS Timebase Generator
  • ICM7209 - Timebase Generator
  • ICM7217 - 4-Digit LED Display / Programmable Up/Down Counter
  • ICM7227 - (ICM7217 / ICM7227) 4-Digit CMOS Up/Down Counter / Display Driver
  • ICM7038 - CMOS Analog Quartz Clock Circuit
  • ICM7045 - CMOS Precision Decade Timers
  • ICM7045A - CMOS Precision Decade Timers
  • ICM7555 - General Purpose Timer

Full PDF Text Transcription

Click to expand full text

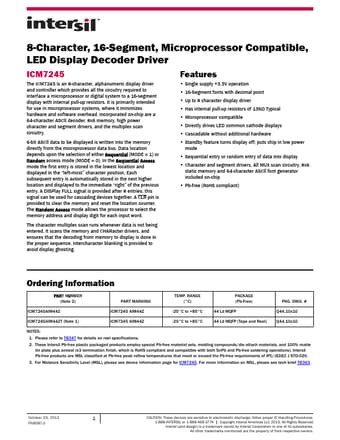

8-Character, 16-Segment, Microprocessor Compatible, LED Display Decoder Driver ICM7245 The ICM7245 is an 8-character, alphanumeric display driver and controller which provides all the circuitry required to interface a microprocessor or digital system to a 16-segment display with internal pull-up resistors. It is primarily intended for use in microprocessor systems, where it minimizes hardware and software overhead. Incorporated on-chip are a 64-character ASClI decoder, 8x6 memory, high power character and segment drivers, and the multiplex scan circuitry. 6-bit ASCll data to be displayed is written into the memory directly from the microprocessor data bus. Data location depends upon the selection of either Sequential (MODE = 1) or Random access mode (MODE = 0).
