MCB1005S100HBP - Ferrite Chip Bead

📥 Download Datasheet

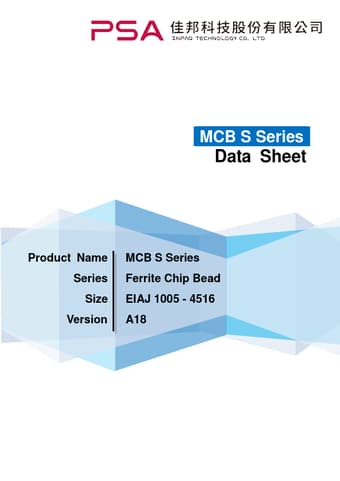

MCB1005S100HBP Datasheet Preview — Preview of MCB1005S100HBP PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MCB1005S100HBP
Manufacturer	INPAQ
File Size	1.59 MB
Description	Ferrite Chip Bead
Datasheet	MCB1005S100HBP-INPAQ.pdf

MCB1005S100HBP Product details

Features

Ø Monolithic inorganic material construction Ø Closed magnetic circuit avoids crosstalk Ø SMD Type & suitable for reflow and wave soldering Ø Available in various sizes Ø Excellent solderability and heat resistance Ø High reliability Ø Effectively filtering capability over a wide range of frequency n.
