ICVE10184E070R500FR - ESD FILTER

📥 Download Datasheet

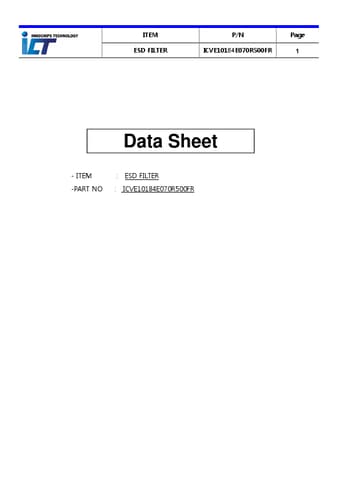

ICVE10184E070R500FR Datasheet Preview — Preview of ICVE10184E070R500FR PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ICVE10184E070R500FR
Manufacturer	INNOCHIPS
File Size	225.47 KB
Description	ESD FILTER
Datasheet	ICVE10184E070R500FR-INNOCHIPS.pdf

ICVE10184E070R500FR Product details

Features

4 EMI filter lines per device.
Multilayer chip EMI suppression filter utilizing π.
type circuit.
Very thin (max. 0.50t) and low space consuming(1.6X0.8mm2) size.
Steep attenuation characteristic plot, Highly effective noise suppression.
Covers a wide range of frequencies.
No asymmetrical degradation.
Simpler fabricating process than diode-type filters.
Soldering of plating type terminations guarantee high phys.
