ICVE10054E250R101FR - ESD FILTER

📥 Download Datasheet

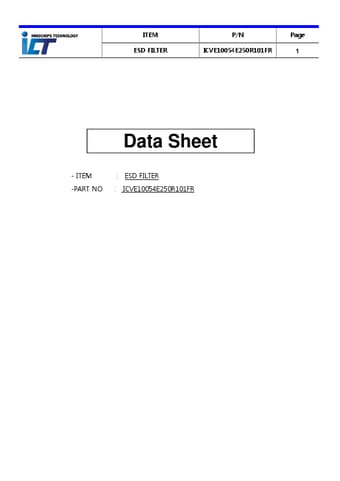

ICVE10054E250R101FR Datasheet Preview — Preview of ICVE10054E250R101FR PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ICVE10054E250R101FR
Manufacturer	INNOCHIPS
File Size	224.46 KB
Description	ESD FILTER
Datasheet	ICVE10054E250R101FR-INNOCHIPS.pdf

ICVE10054E250R101FR Product details

Features

4 EMI filter lines per device.
Multilayer chip EMI suppression filter utilizing π.
type circuit.
Very thin (max. 0.50t) and low space consuming(1.6X0.8mm2) size.
Steep attenuation characteristic plot, Highly effective noise suppression.
Covers a wide range of frequencies.
No asymmetrical degradation.
Simpler fabricating process than diode-type filters.
Soldering of plating type terminations guarantee high phys.
