TR-3025-PC - Current SenseTransformers

📥 Download Datasheet

Datasheet Details

Part number TR-3025-PC
Manufacturer INDUCTIVE
File Size 94.82 KB
Description Current SenseTransformers
Datasheet download datasheet TR-3025-PC Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TR-3535-C1LU LED Sunview optoelectronics
TR-7010 2m SSB Transceiver Manual Kenwood
TR-7400A 2m FM Transceiver Manual Kenwood
TR-LM7WR3PS LCD Panasonic

Other Datasheets by INDUCTIVE

Part Number Description
TR-30025-PC Current SenseTransformers
TR-10025-PC Current SenseTransformers
TR-20025-PC Current SenseTransformers
TR-5025-PC Current SenseTransformers

Full PDF Text Transcription

Click to expand full text

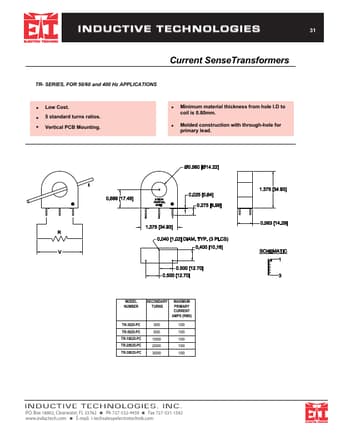

INDUCTIVE TECHNOLOGIES 31 ELECTRO TECHNIK Current SenseTransformers TR- SERIES, FOR 50/60 and 400 Hz APPLICATIONS • Low Cost. • 5 standard turns ratios. • Vertical PCB Mounting. • Minimum material thickness from hole I.D to coil is 0.80mm. • Molded construction with through-hole for primary lead. MODEL NUMBER SECONDARY TURNS MAXIMUM PRIMARY CURRENT AMPS (RMS) TR-3025-PC 300 100 TR-5025-PC 500 100 TR-10025-PC 1000 100 TR-20025-PC 2000 100 TR-30025-PC 3000 100 INDUCTIVE TECHNOLOGIES, INC. P.O. Box 18802, Clearwater, FL 33762 Ph 727-532-4459 Fax 727-531-1592 www.inductech.com E-mail: i-techsales@electrotechnik.
