TT2190 NPN Transistor

TT2190 Description

isc Silicon NPN Power Transistor TT2190 .
High speed. High Breakdown Voltage- : VCBO= 1500V (Min). Low Collector Saturation Voltage- : VCE(sat)= 3. Built-i.

TT2190 Applications

* Designed for Color TV Horizontal Deflection Output Applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 1500 V VCEO Collector-Emitter Voltage 800 V VEBO Emitter-Base Voltage 6 V IC Collector Current- Continuous 8 A ICP Coll

📥 Download Datasheet

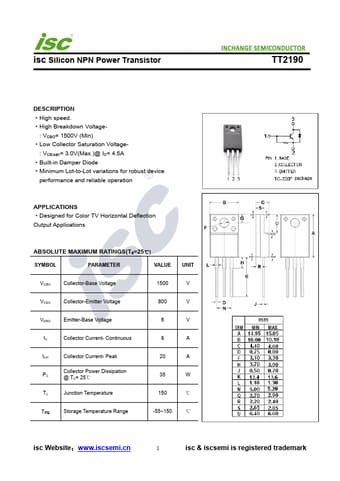

Preview of TT2190 PDF
datasheet Preview Page 2

Datasheet Details

Part number
TT2190
Manufacturer
INCHANGE
File Size
175.99 KB
Datasheet
TT2190-INCHANGE.pdf
Description
NPN Transistor
