STW19NM50N N-Channel MOSFET

STW19NM50N Description

isc N-Channel Mosfet Transistor *.

STW19NM50N Features

* Drain Current ID= 14A@ TC=25℃
* Drain Source Voltage- : VDSS= 500V(Min)
* Fast Switching Speed
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

STW19NM50N Applications

* Switching applications
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 500 V VGS Gate-Source Voltage ±25 V ID Drain Current-continuous@ TC=25℃ 14 A IDM Pulse Drain Current 56 A Ptot Total Dissipation@TC=25℃ 110 W Tj Max. Oper

📥 Download Datasheet

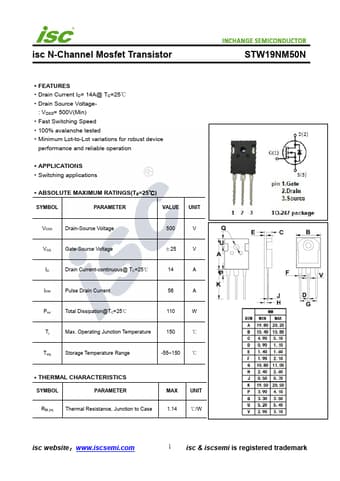

Preview of STW19NM50N PDF
datasheet Preview Page 2

Datasheet Details

Part number
STW19NM50N
Manufacturer
INCHANGE
File Size
370.43 KB
Datasheet
STW19NM50N-INCHANGE.pdf
Description
N-Channel MOSFET
