STU13NM60N N-Channel MOSFET

STU13NM60N Description

Isc N-Channel MOSFET Transistor *.

STU13NM60N Features

* Drain Current
* ID= 11A@ TC=25℃
* Drain Source Voltage- : VDSS= 600V(Min)
* Static Drain-Source On-Resistance : RDS(on) = 360mΩ(Max)
* 100% avalanche tested
* Low input capacitance and gate charge
* Minimum Lot-to-Lot variations for robust device performance and reliable o

STU13NM60N Applications

* Switching applications
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS VGSS Drain-Source Voltage Gate-Source Voltage 600 V ±25 V ID Drain Current-Continuous@TC=25℃ 11 A IDM Drain Current-Single Pulsed PD Total Dissipation 44 A 25 W Tj Operating Ju

📥 Download Datasheet

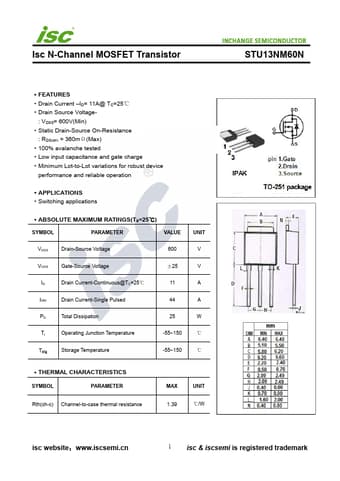

Preview of STU13NM60N PDF
datasheet Preview Page 2

Datasheet Details

Part number
STU13NM60N
Manufacturer
INCHANGE
File Size
265.27 KB
Datasheet
STU13NM60N-INCHANGE.pdf
Description
N-Channel MOSFET
