STTH2003CG - Ultrafast Rectifier

Features

  • With TO-263(DPAK) packaging.
  • Low forward voltage drop.
  • Super high speed switching.
  • High reliability by planer design.
  • High surge current capability.
  • Minimum Lot-to-Lot variations for robust device performance and reliable operation.

📥 Download Datasheet

📁 Similar Datasheet

  • STTH2003CG - 300V ultrafast rectifier (STMicroelectronics)
  • STTH2003CR - 300V ultrafast rectifier (STMicroelectronics)
  • STTH2003CT - 300V ultrafast rectifier (STMicroelectronics)
  • STTH2003 - 300V ultrafast rectifier (ST Microelectronics)
  • STTH20002TV - TURBO 2 ULTRAFAST HIGH VOLTAGE RECTIFIER (ST Microelectronics)
  • STTH20003TV - Ultrafast high voltage rectifier (ST Microelectronics)
  • STTH20004TV1 - Ultrafast high voltage rectifier (ST Microelectronics)
  • STTH2002 - Ultrafast recovery diode (ST Microelectronics)
  • STTH2002C - HIGH EFFICIENCY ULTRAFAST DIODE (ST Microelectronics)
  • STTH2006 - Turbo 2 ultrafast high voltage rectifierV (STMicroelectronics)
Other Datasheets by INCHANGE

Full PDF Text Transcription

Click to expand full text

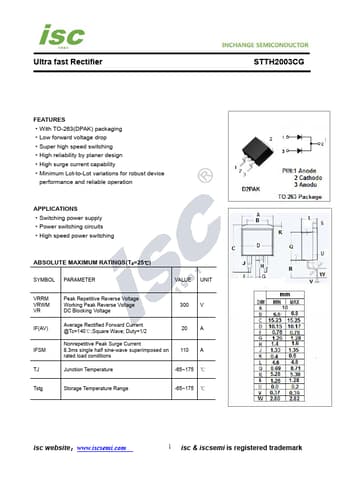

Ultra fast Rectifier STTH2003CG FEATURES ·With TO-263(DPAK) packaging ·Low forward voltage drop ·Super high speed switching ·High reliability by planer design ·High surge current capability ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Switching power supply ·Power switching circuits ·High speed power switching ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VRRM VRWM VR IF(AV) IFSM TJ Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage 300 V Average Rectified Forward Current @Tc=140℃;Square Wave; Duty=1/2 20 A Nonrepetitive Peak Surge Current 8.
