STPS15H100CB Schottky Barrier Rectifier

STPS15H100CB Description

Schottky Rectifier INCHANGE Semiconductor STPS15H100CB .

STPS15H100CB Features

* Plastic material used carriers Underwriter Laboratory
* Metal silicon junction, majority carrier conduction
* Low Power Loss,high Efficiency
* Guard ring for overvoltage protection
* High Surge Capability,High Current Capability
* Minimum Lot-to-Lot variations for robust device p

STPS15H100CB Applications

* For use in low voltage,high frequency inverters,free wheeling and polarity protection applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VRRM VRWM VR IF(RMS) Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Forward current VALUE UNIT 100

📥 Download Datasheet

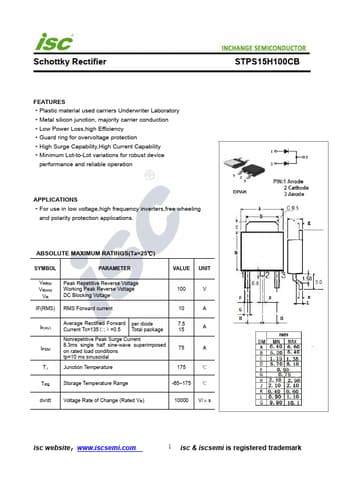

Preview of STPS15H100CB PDF
datasheet Preview Page 2

Datasheet Details

Part number
STPS15H100CB
Manufacturer
INCHANGE
File Size
183.55 KB
Datasheet
STPS15H100CB-INCHANGE.pdf
Description
Schottky Barrier Rectifier
