STP18NM60ND - N-Channel MOSFET

Description

Low Drain-Source On-Resistance APPLICATIONS Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS VGS ID IDM PD TJ Tstg Drain-Source Voltage Gate-Source Voltage-Continuous Drain Current-Continuous Drain Current-Single Pluse Total Dissipation @TC=25℃

Features

  • Drain Current.
  • ID= 13A@ TC=25℃.
  • Drain Source Voltage- : VDSS= 600V(Min).
  • Static Drain-Source On-Resistance : RDS(on) = 290mΩ(Max).
  • 100% avalanche tested.
  • Minimum Lot-to-Lot variations for robust device performance and reliable operation.

📥 Download Datasheet

📁 Similar Datasheet

  • STP18NM60ND - N-channel Power MOSFET (STMicroelectronics)
  • STP18NM60N - Power MOSFET (ST Microelectronics)
  • STP18NM80 - N-channel Power MOSFET (STMicroelectronics)
  • STP18N55M5 - N-channel Power MOSFET (STMicroelectronics)
  • STP18N60DM2 - N-channel Power MOSFET (STMicroelectronics)
  • STP18N60M2 - N-CHANNEL POWER MOSFET (STMicroelectronics)
  • STP18N65M2 - N-channel Power MOSFET (STMicroelectronics)
  • STP18N65M5 - N-channel Power MOSFET (STMicroelectronics)
  • STP1806 - N-Channel Power MOSFET (ST Microelectronics)
  • STP180N10F3 - N-CHANNEL POWER MOSFET (STMicroelectronics)
Other Datasheets by INCHANGE

Full PDF Text Transcription

Click to expand full text

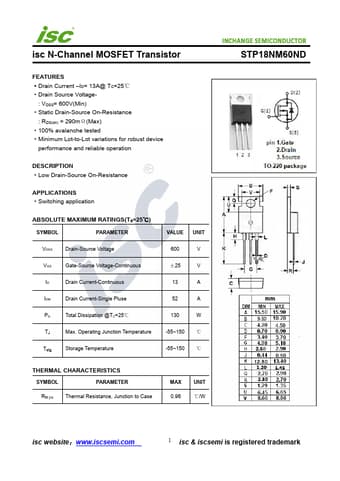

isc N-Channel MOSFET Transistor FEATURES ·Drain Current –ID= 13A@ TC=25℃ ·Drain Source Voltage- : VDSS= 600V(Min) ·Static Drain-Source On-Resistance : RDS(on) = 290mΩ(Max) ·100% avalanche tested ·Minimum Lot-to-Lot variations for robust device performance and reliable operation DESCRIPTION ·Low Drain-Source On-Resistance APPLICATIONS ·Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS VGS ID IDM PD TJ Tstg Drain-Source Voltage Gate-Source Voltage-Continuous Drain Current-Continuous Drain Current-Single Pluse Total Dissipation @TC=25℃ Max. Operating Junction Temperature Storage Temperature 600 V ±25 V 13 A 52 A 130 W -55~150 ℃ -55~150 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Thermal Resistance, Junction to Case MAX 0.
