SF2004CT - Ultrafast Rectifier

Features

  • High current capability.
  • High surge current capability.
  • Low reverse current.
  • Minimum Lot-to-Lot variations for robust device performance and reliable operation.

📥 Download Datasheet

📁 Similar Datasheet

  • SF2004G - (SF2001G - SF2008G) Glass Passivated Super Fast Rectifiers (Taiwan Semiconductor Company)
  • SF2004G - (SF2001G - SF2008G) Glass Passivated Super Fast Rectifiers (Luguang Electronic Technology)
  • SF2004G - (SF2001G - SF2008G) 20.0 Ampere Dual Unipolar-Doubler Polarity Superfast Recovery Diode (Thinki Semiconductor)
  • SF2004GA - (SF2001GA - SF2008GA) 20.0 Ampere Dual Unipolar-Doubler Polarity Superfast Recovery Diode (Thinki Semiconductor)
  • SF2004GD - (SF2001GD - SF2008GD) 20.0 Ampere Dual Unipolar-Doubler Polarity Superfast Recovery Diode (Thinki Semiconductor)
  • SF2004PT - (SF2001PT - SF2008PT) Glass Passivated Super Fast Rectifiers (Taiwan Semiconductor Company)
  • SF200-0AG-005P - Miniature Based LED Lamps (LEDTRONICS)
  • SF200-0AG-014P - Miniature Based LED Lamps (LEDTRONICS)
  • SF200-0AG-024P - Miniature Based LED Lamps (LEDTRONICS)
  • SF200-0AG-028P - Miniature Based LED Lamps (LEDTRONICS)
Other Datasheets by INCHANGE
  • SF2008 - Fast Recovery Rectifier

Full PDF Text Transcription

Click to expand full text

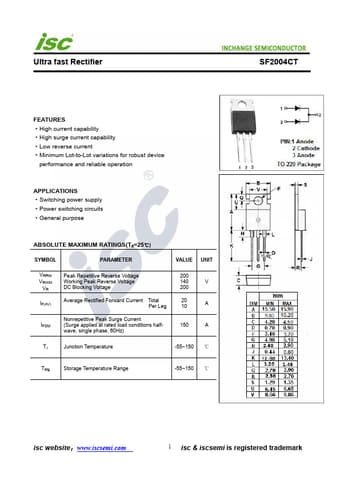

Ultra fast Rectifier INCHANGE Semiconductor SF2004CT FEATURES ·High current capability ·High surge current capability ·Low reverse current ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Switching power supply ·Power switching circuits ·General purpose ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VRRM VRWM VR Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage 200 140 V 200 IF(AV) Average Rectified Forward Current Total Per Leg 20 10 A Nonrepetitive Peak Surge Current IFSM (Surge applied at rated load conditions half- 150 A wave, single phase, 60Hz) TJ Junction Temperature -55~150 ℃ Tstg Storage Temperature Range -55~150 ℃ isc website：www.iscsemi.
