KSH210 - PNP Transistor

Description

High DC current gain Built-in a damper diode at E-C Lead formed for surface mount applications(NO suffix) Straight lead(IPAK,“－I”suffix) DPAK for surface mount applications 100% avalanche tested Minimum Lot-to-Lot variations for robust device performance and reliab

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
KSH210 PNP Transistor Fairchild Semiconductor
KSH200 NPN Transistor Fairchild Semiconductor
KSH29 NPN Transistor Fairchild Semiconductor
KSH2955 PNP Transistor Fairchild Semiconductor
KSH29C NPN Transistor Fairchild Semiconductor

Other Datasheets by Inchange Semiconductor

Part Number Description
KSH200 NPN Transistor
KSH2955 PNP Transistor
KSH112 NPN Transistor
KSH117 PNP Transistor
KSH122 NPN Transistor

Full PDF Text Transcription

Click to expand full text

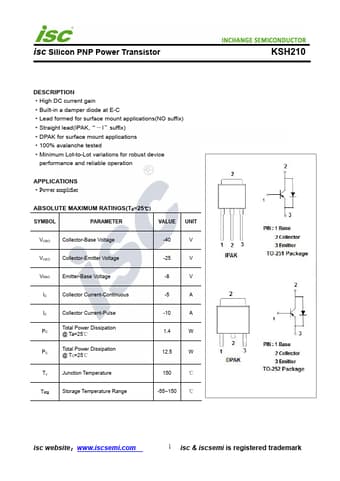

isc Silicon PNP Power Transistor DESCRIPTION ·High DC current gain ·Built-in a damper diode at E-C ·Lead formed for surface mount applications(NO suffix) ·Straight lead(IPAK,“－I”suffix) ·DPAK for surface mount applications ·100% avalanche tested ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Power amplifier ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -40 V VCEO Collector-Emitter Voltage -25 V VEBO Emitter-Base Voltage -8 V IC Collector Current-Continuous -5 A IC Collector Current-Pulse PC Total Power Dissipation @ Ta=25℃ PC Total Power Dissipation @ TC=25℃ -10 A 1.4 W 12.
