IXFA130N10T2 - N-Channel MOSFET

Features

  • Static drain-source on-resistance: RDS(on) ≤ 9.1mΩ@VGS=10V.
  • Fully characterized avalanche voltage and current.
  • 100% avalanche tested.
  • Minimum Lot-to-Lot variations for robust device performance and reliable operation.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IXFA130N10T2 Power MOSFET IXYS Corporation
IXFA130N10T Power MOSFET IXYS Corporation
IXFA130N15X3 Power MOSFET IXYS
IXFA102N15T Power MOSFET IXYS Corporation
IXFA10N60P Polar MOSFET IXYS Corporation

Other Datasheets by Inchange Semiconductor

Part Number Description
IXFA130N10T N-Channel MOSFET
IXFA130N15X3 N-Channel MOSFET
IXFA102N15T N-Channel MOSFET
IXFA110N15T2 N-Channel MOSFET
IXFA12N65X2 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

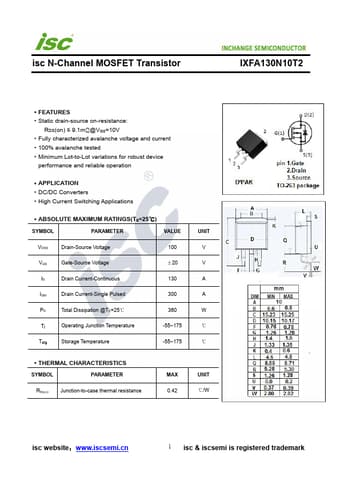

isc N-Channel MOSFET Transistor IXFA130N10T2 ·FEATURES ·Static drain-source on-resistance: RDS(on) ≤ 9.1mΩ@VGS=10V ·Fully characterized avalanche voltage and current ·100% avalanche tested ·Minimum Lot-to-Lot variations for robust device performance and reliable operation ·APPLICATION ·DC/DC Converters ·High Current Switching Applications ·ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 100 VGS Gate-Source Voltage ±20 ID Drain Current-Continuous 130 IDM Drain Current-Single Pulsed 300 PD Total Dissipation @TC=25℃ 360 Tj Operating Junction Temperature -55~175 Tstg Storage Temperature -55~175 UNIT V V A A W ℃ ℃ ·THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth(j-c) Junction-to-case thermal resistance MAX 0.
