IRFZ44E N-Channel MOSFET

IRFZ44E Description

isc N-Channel MOSFET Transistor INCHANGE Semiconductor IRFZ44E， IIRFZ44E *.

IRFZ44E Features

* Static drain-source on-resistance: RDS(on) ≤23mΩ
* Enhancement mode
* Fast Switching Speed
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation
* DESCRITION

IRFZ44E Applications

* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 60 VGS Gate-Source Voltage ±20 ID Drain Current-Continuous 48 IDM Drain Current-Single Pulsed 192 PD Total Dissipation @TC=25℃ 110 Tj Max. Operating Junction Temperature 175 Tstg Storage Te

📥 Download Datasheet

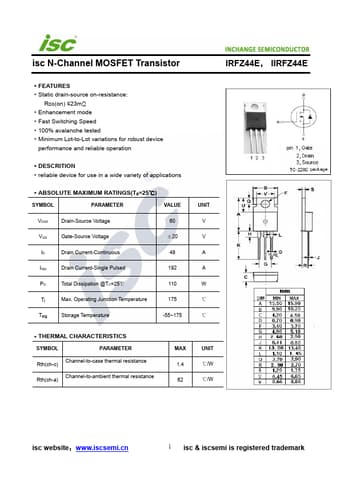

Preview of IRFZ44E PDF
datasheet Preview Page 2

Datasheet Details

Part number
IRFZ44E
Manufacturer
INCHANGE
File Size
241.81 KB
Datasheet
IRFZ44E-INCHANGE.pdf
Description
N-Channel MOSFET
