IRFP460B - N-Channel MOSFET

INCHANGE

📥 Download Datasheet

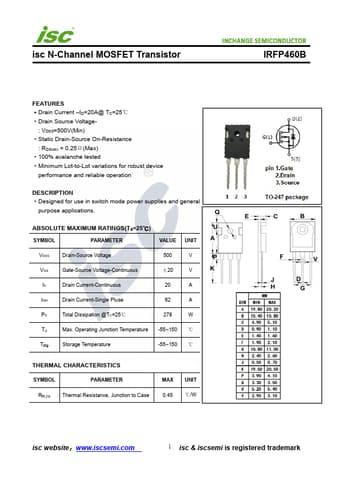

IRFP460B Datasheet Preview — Preview of IRFP460B PDF

Datasheet Details

Part number	IRFP460B
Manufacturer	INCHANGE
File Size	370.89 KB
Description	N-Channel MOSFET
Datasheet	IRFP460B-INCHANGE.pdf

IRFP460B Product details

Description

Designed for use in switch mode power supplies and general purpose applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 500 V VGS Gate-Source Voltage-Continuous ±20 V ID Drain Current-Continuous 20 A IDM Drain Current-Single Pluse 62 A PD Total Dissipation @TC=25℃ 278 W TJ Max.Operating Junction Temperature -55~150 ℃ Tstg Storage Temperature -55~150 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Thermal R

Features

Drain Current.
ID=20A@ TC=25℃.
Drain Source Voltage- : VDSS=500V(Min).
Static Drain-Source On-Resistance : RDS(on) = 0.25Ω(Max).
100% avalanche tested.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.
