IPB144N12N3G - N-Channel MOSFET

Features

  • With To-263(D2PAK) package.
  • Low input capacitance and gate charge.
  • Low gate input resistance.
  • 100% avalanche tested.
  • Minimum Lot-to-Lot variations for robust device performance and reliable operation.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IPB144N12N3G MOSFET Infineon
IPB144N12N3 MOSFET Infineon
IPB147N03L Power-Transistor Infineon
IPB147N03LG Power-Transistor Infineon Technologies
IPB14N03LA OptiMOS 2 Power-Transistor Infineon Technologies AG

Other Datasheets by Inchange Semiconductor

Part Number Description
IPB107N20N3 N-Channel MOSFET
IPB107N20NA N-Channel MOSFET
IPB108N15N3G N-Channel MOSFET
IPB110N20N3LF N-Channel MOSFET
IPB117N20NFD N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

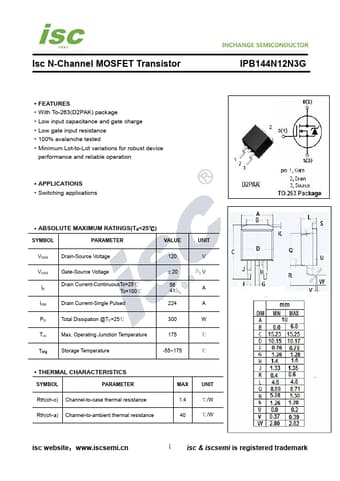

Isc N-Channel MOSFET Transistor IPB144N12N3G ·FEATURES ·With To-263(D2PAK) package ·Low input capacitance and gate charge ·Low gate input resistance ·100% avalanche tested ·Minimum Lot-to-Lot variations for robust device performance and reliable operation ·APPLICATIONS ·Switching applications ·ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 120 VGSS ID IDM Gate-Source Voltage Drain Current-ContinuousTc=25℃ Tc=100℃ Drain Current-Single Pulsed ±20 56 41 224 PD Total Dissipation @TC=25℃ 300 Tch Max. Operating Junction Temperature 175 Tstg Storage Temperature -55~175 UNIT V V A A W ℃ ℃ ·THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth(ch-c) Channel-to-case thermal resistance Rth(ch-a) Channel-to-ambient thermal resistance MAX 1.
