DD502A - NPN Transistor

Product Overview

📥 Download Datasheet

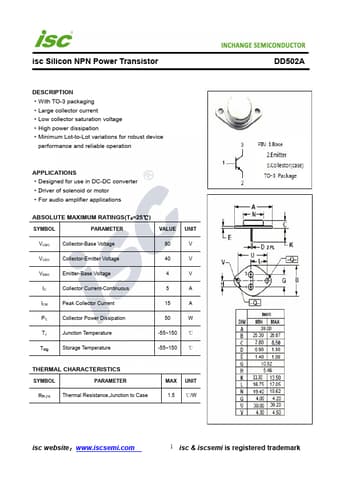

Datasheet preview – DD502A

Datasheet Details

Part number DD502A
Manufacturer INCHANGE
File Size 203.88 KB
Description NPN Transistor
Datasheet download datasheet DD502A Datasheet
Additional preview pages of the DD502A datasheet.

Product details

Description

With TO-3 packaging Large collector current Low collector saturation voltage High power dissipation Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for use in DC-DC converter Driver of solenoid or motor For audio amplifier applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 80 V VCEO Collector-Emitter Voltage 40 V VEBO Emitter-Base Vol
