BU922T - NPN Transistor

The BU922T by INCHANGE is a NPN Transistor. Below is the official datasheet preview.

📥 Download Datasheet

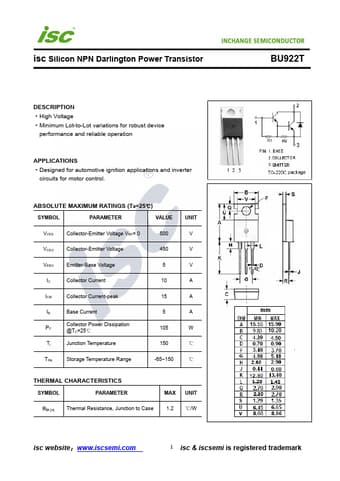

Official preview page of the BU922T NPN Transistor datasheet (INCHANGE).

Datasheet Details

Part number BU922T
Manufacturer INCHANGE
File Size 207.11 KB
Description NPN Transistor
Datasheet download datasheet BU922T-INCHANGE.pdf
Additional preview pages of the BU922T datasheet.

BU922T Product details

Description

High Voltage Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for automotive ignition applications and inverter circuits for motor control.ABSOLUTE MAXIMUM RATINGS (Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCES Collector-Emitter Voltage VBE= 0 500 V VCEO Collector-Emitter Voltage 450 V VEBO Emitter-Base Voltage 5 V IC Collector Current 10 A ICM Collector Current-peak 15 A IB Base Current PC Collector
