BU208 - NPN Transistor

Description

High Voltage-VCEX= 1300V(Min.) Collector Current- IC = 5.0A Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS

Designed for use in large screen color deflection circuits .

📥 Download Datasheet

📁 Similar Datasheet

  • BU208 - Silicon NPN Transistor (Toshiba)
  • BU208 - HIGH VOLTAGE NPN SILICON POWER TRANSISTOR (Central Semiconductor)
  • BU208A - NPN Transistor (Motorola Inc)
  • BU208A - Horizontal Deflection Transistor (ON Semiconductor)
  • BU208A - HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTORS (ST Microelectronics)
  • BU208A - SILICON DIFFUSED POWER TRANSISTOR (UTC)
  • BU208A - HIGH VOLTAGE NPN SILICON POWER TRANSISTOR (Central Semiconductor)
  • BU208A - Power Transistor (Multicomp)
  • BU208A - Silicon NPN Power Transistors (SavantIC)
  • BU208A - SILICON NPN Transistor (Toshiba)
Other Datasheets by INCHANGE

Full PDF Text Transcription

Click to expand full text

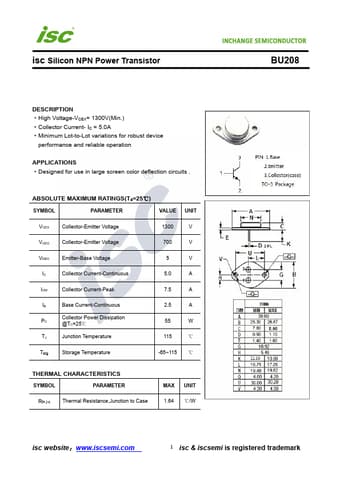

isc Silicon NPN Power Transistor BU208 DESCRIPTION ·High Voltage-VCEX= 1300V(Min.) ·Collector Current- IC = 5.0A ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Designed for use in large screen color deflection circuits . ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCEX Collector-Emitter Voltage 1300 V VCEO Collector-Emitter Voltage 700 V VEBO Emitter-Base Voltage 5 V IC Collector Current-Continuous 5.0 A ICM Collector Current-Peak 7.5 A IB Base Current-Continuous PC Collector Power Dissipation @TC=25℃ TJ Junction Temperature 2.5 A 55 W 115 ℃ Tstg Storage Temperature -65~115 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Thermal Resistance,Junction to Case MAX UNIT 1.
