BDW24A, BDW24 - PNP Transistor

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BDW24A, BDW24. Please refer to the document for exact specifications by model.

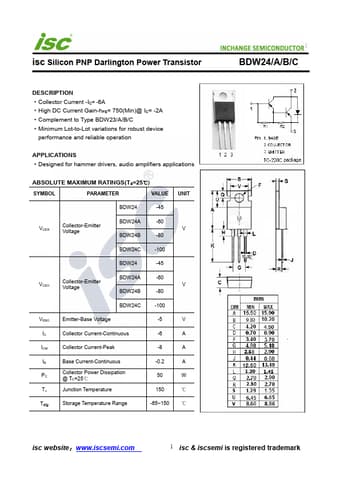

datasheet Preview Page 2

Datasheet Details

Part number BDW24A, BDW24
Manufacturer INCHANGE
File Size 211.28 KB
Description PNP Transistor
Datasheet download datasheet BDW24-INCHANGE.pdf
Note This datasheet PDF includes multiple part numbers: BDW24A, BDW24.
Please refer to the document for exact specifications by model.

BDW24A Product details

Description

Collector Current -IC= -6A High DC Current Gain-hFE= 750(Min)@ IC= -2A Complement to Type BDW23/A/B/C Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for hammer drivers, audio amplifiers applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT BDW24 -45 BDW24A -60 VCER Collector-Emitter Voltage V BDW24B -80 BDW24C -100 BDW24 -45 BDW24A -60 VCEO Collector-Emitter Voltage V B
