BDT60F - PNP Transistor

📥 Download Datasheet

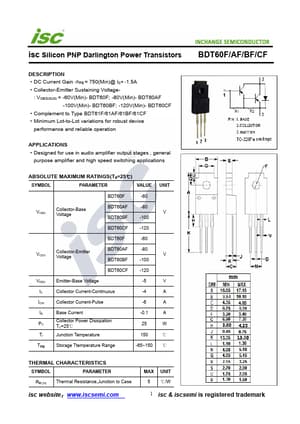

Preview of BDT60F PDF
datasheet Preview Page 2

Datasheet Details

Part number BDT60F
Manufacturer INCHANGE
File Size 212.83 KB
Description PNP Transistor
Datasheet download datasheet BDT60F-INCHANGE.pdf

BDT60F Product details

Description

DC Current Gain -hFE = 750(Min)@ IC= -1.5A Collector-Emitter Sustaining Voltage- : VCEO(SUS) = -60V(Min)- BDT60F; -80V(Min)- BDT60AF -100V(Min)- BDT60BF; -120V(Min)- BDT60CF Complement to Type BDT61F/61AF/61BF/61CF Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for use in audio amplifier output stages , general purpose amplifier and high speed switching applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARA
