BD800 - PNP Transistor

Description

Collector-Emitter Sustaining Voltage- : VCEO(SUS) = -80V(Min) Low Saturation Voltage Complement to Type BD799 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for a wide variety of medium-power switching and amplifier a

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BD800M5WFP2-C LDO Regulators ROHM
BD800M5WFPJ-C LDO Regulators ROHM
BD800M5WHFP-C LDO Regulators ROHM
BD801 Plastic High Power Silicon NPN Transistor Motorola Inc
BD802 Plastic High Power Silicon PNP Transistor Motorola Inc

Other Datasheets by Inchange Semiconductor

Part Number Description
BD801 NPN Transistor
BD802 PNP Transistor
BD807 NPN Transistor
BD808 PNP Transistor
BD809 NPN Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

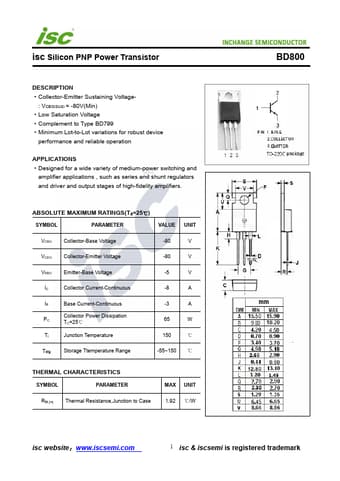

isc Silicon PNP Power Transistor DESCRIPTION ·Collector-Emitter Sustaining Voltage- : VCEO(SUS) = -80V(Min) ·Low Saturation Voltage ·Complement to Type BD799 ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Designed for a wide variety of medium-power switching and amplifier applications , such as series and shunt regulators and driver and output stages of high-fidelity amplifiers.
