A1002 Silicon PNP Power Transistor

A1002 Description

INCHANGE Semiconductor  isc Silicon PNP Power Transistor  isc Product Specification  2SA1002  .
High Current Capability . Collector­Emitter Breakdown Voltage­  : V(BR)CEO= ­120V(Min. Designed for audio and general p.

A1002 Applications

* Designed for audio and general purpose applications.   ABSOLUTE MAXIMUM RATINGS(Ta=25℃)  SYMBOL  PARAMETER  VALUE  UNIT  VCBO  Collector­Base Voltage  ­120  V  VCEO  Collector­Emitter Voltage  ­120  V  VEBO  Emitter­Base Voltage  ­6  V  IC  Collector Current­Continuous  Collector P

📥 Download Datasheet

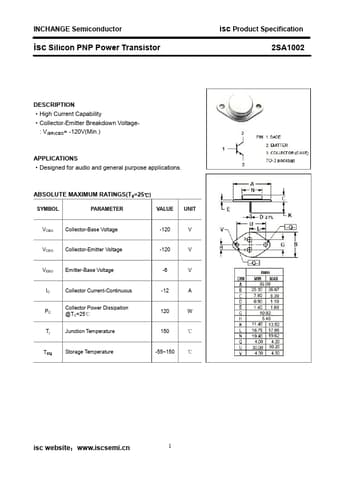

Preview of A1002 PDF
datasheet Preview Page 2

Datasheet Details

Part number
A1002
Manufacturer
INCHANGE
File Size
113.70 KB
Datasheet
A1002-INCHANGE.pdf
Description
Silicon PNP Power Transistor
