2SK551 - N-Channel MOSFET Transistor

Description

Drain Current ID= 10A@ TC=25℃ Drain Source Voltage- : VDSS= 120V(Min) Fast Switching Speed APPLICATIONS

applications such as switching regulators, converters, solenoid and relay drivers.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK551 Silicon N-Channel MOSFET Renesas
2SK552 Silicon N-Channel MOSFET Renesas
2SK553 N-Channel MOSFET Transistor Inchange Semiconductor
2SK553 Silicon N-Channel MOSFET Renesas
2SK554 N-Channel MOSFET Transistor Inchange Semiconductor

Other Datasheets by Inchange Semiconductor

Part Number Description
2SK552 N-Channel MOSFET Transistor
2SK513 N-Channel MOSFET Transistor
2SK525 N-Channel MOSFET Transistor
2SK526 N-Channel MOSFET Transistor
2SK528 N-Channel MOSFET Transistor

Full PDF Text Transcription

Click to expand full text

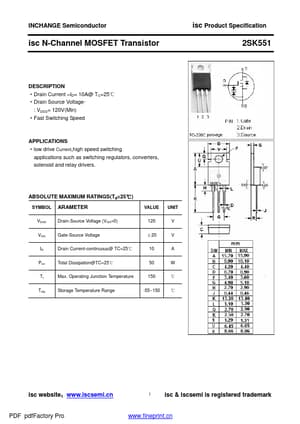

INCHANGE Semiconductor isc N-Channel MOSFET Transistor isc Product Specification 2SK551 DESCRIPTION ·Drain Current –ID= 10A@ TC=25℃ ·Drain Source Voltage- : VDSS= 120V(Min) ·Fast Switching Speed APPLICATIONS ·low drive Current,high speed switching applications such as switching regulators, converters, solenoid and relay drivers. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS VGS ID Ptot Tj Tstg Drain-Source Voltage (VGS=0) 120 V Gate-Source Voltage ±20 V Drain Current-continuous@ TC=25℃ 10 A Total Dissipation@TC=25℃ 50 W Max. Operating Junction Temperature 150 ℃ Storage Temperature Range -55~150 ℃ isc website：www.iscsemi.cn 1 isc & iscsemi is registered trademark PDF pdfFactory Pro www.fineprint.
