2SK3680 - N-Channel MOSFET

INCHANGE

📥 Download Datasheet

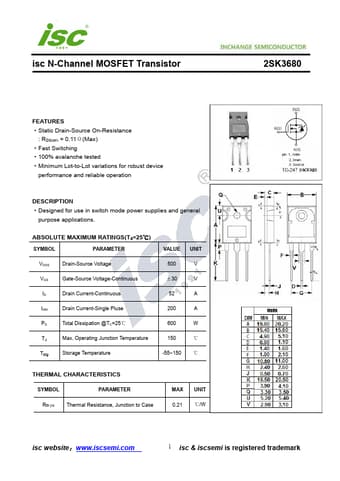

2SK3680 Datasheet Preview — Preview of 2SK3680 PDF

Datasheet Details

Part number	2SK3680
Manufacturer	INCHANGE
File Size	268.32 KB
Description	N-Channel MOSFET
Datasheet	2SK3680-INCHANGE.pdf

2SK3680 Product details

Description

Designed for use in switch mode power supplies and general purpose applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 500 V VGS Gate-Source Voltage-Continuous ±30 V ID Drain Current-Continuous 52 A IDM Drain Current-Single Pluse 200 A PD Total Dissipation @TC=25℃ 600 W TJ Max.Operating Junction Temperature 150 ℃ Tstg Storage Temperature -55~150 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Thermal Res

Features

Static Drain-Source On-Resistance : RDS(on) = 0.11Ω(Max).
Fast Switching.
100% avalanche tested.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.
