2SK2796L - N-Channel MOSFET

INCHANGE

📥 Download Datasheet

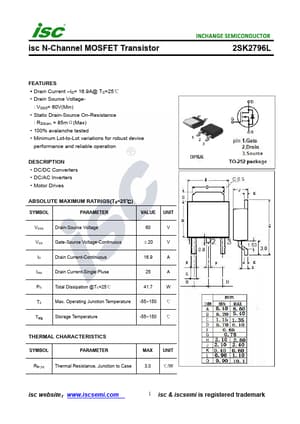

2SK2796L Datasheet Preview — Preview of 2SK2796L PDF

Datasheet Details

Part number	2SK2796L
Manufacturer	INCHANGE
File Size	261.46 KB
Description	N-Channel MOSFET
Datasheet	2SK2796L-INCHANGE.pdf

2SK2796L Product details

Description

DC/DC Converters DC/AC Inverters Motor Drives ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 60 V VGS Gate-Source Voltage-Continuous ±20 V ID Drain Current-Continuous 16.9 A IDM Drain Current-Single Pluse 25 A PD Total Dissipation @TC=25℃ 41.7 W TJ Max.Operating Junction Temperature -55~150 ℃ Tstg Storage Temperature -55~150 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER MAX UNIT Rth j-c Thermal Resistance, Jun

Features

Drain Current.
ID= 16.9A@ TC=25℃.
Drain Source Voltage- : VDSS= 60V(Min).
Static Drain-Source On-Resistance : RDS(on) = 85mΩ(Max).
100% avalanche tested.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.
