2SK1968 - N-Channel MOSFET

Description

Drain Current ID=12A@ TC=25℃ Drain Source Voltage- : VDSS= 600V(Min) Fast Switching Speed Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Suitable for switching regulator ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAME

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK1968 Silicon N-Channel MOSFET Hitachi Semiconductor
2SK1960 N-Channel MOSFET NEC
2SK1961 N-Channel MOSFET Sanyo Semicon Device
2SK1969-01 N-Channel MOSFET Fuji Electric
2SK19 N-CHANNEL SILICON FET Micro Electronics

Other Datasheets by Inchange Semiconductor

Part Number Description
2SK1969-01 N-Channel MOSFET
2SK1917-M N-Channel MOSFET
2SK1937-01 N-Channel MOSFET
2SK1938-01 N-Channel MOSFET
2SK1939-01 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

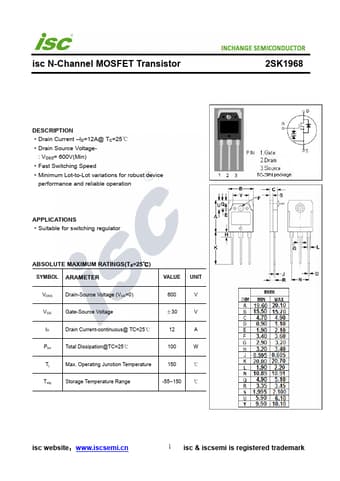

isc N-Channel MOSFET Transistor 2SK1968 DESCRIPTION ·Drain Current –ID=12A@ TC=25℃ ·Drain Source Voltage- : VDSS= 600V(Min) ·Fast Switching Speed ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Suitable for switching regulator ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 600 V VGS Gate-Source Voltage ±30 V ID Drain Current-continuous@ TC=25℃ 12 A Ptot Total Dissipation@TC=25℃ 100 W Tj Max. Operating Junction Temperature 150 ℃ Tstg Storage Temperature Range -55~150 ℃ isc website：www.iscsemi.
