2SD971 - NPN Transistor

📥 Download Datasheet

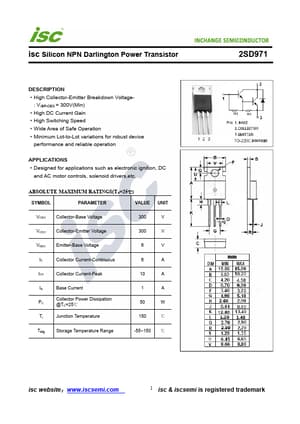

Preview of 2SD971 PDF
datasheet Preview Page 2

Datasheet Details

Part number 2SD971
Manufacturer INCHANGE
File Size 198.38 KB
Description NPN Transistor
Datasheet download datasheet 2SD971-INCHANGE.pdf

2SD971 Product details

Description

High Collector-Emitter Breakdown Voltage- : V(BR)CEO = 300V(Min) High DC Current Gain High Switching Speed Wide Area of Safe Operation Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for applications such as electronic ignition, DC and AC motor controls, solenoid drivers,etc.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 300 V VCEO Collector-Emitter Voltage
