2SD715 - NPN Transistor

Description

High DC Current Gain : hFE= 2000(Min)@ IC= 1A Collector-Emitter Sustaining Voltage- : VCEO(SUS) = 110V(Min) High Reliability 100% avalanche tested Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for audio frequen

📥 Download Datasheet

📁 Similar Datasheet

  • 2SD711 - NPN Power Transistor (Fuji)
  • 2SD716 - NPN Transistor (Toshiba)
  • 2SD716 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SD717 - NPN Transistor (Toshiba)
  • 2SD717 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SD718 - NPN EPITAXIAL SILICON TRANSISTOR (UTC)
  • 2SD718 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SD718 - Silicon NPN Transistor (Toshiba)
  • 2SD718 - Silicon NPN Triple Diffused Transistor (JILIN SINO)
  • 2SD718A - Silicon NPN Triple Diffused Transistor (JILIN SINO)
Other Datasheets by INCHANGE

Full PDF Text Transcription

Click to expand full text

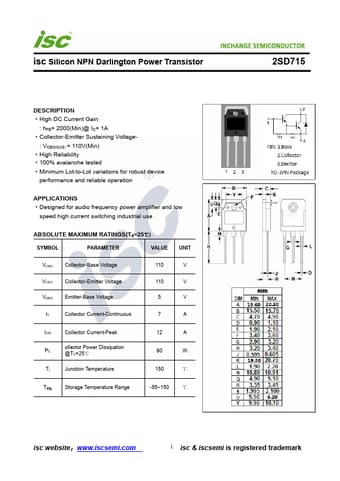

INCHANGE Semiconductor isc Silicon NPN Darlington Power Transistor 2SD715 DESCRIPTION ·High DC Current Gain : hFE= 2000(Min)@ IC= 1A ·Collector-Emitter Sustaining Voltage- : VCEO(SUS) = 110V(Min) ·High Reliability ·100% avalanche tested ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Designed for audio frequency power amplifier and low speed high current switching industrial use ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage VCEO VEBO Collector-Emitter Voltage Emitter-Base Voltage IC Collector Current-Continuous 110 V 110 V 5 V 7 A ICM Collector Current-Peak PC ollector Power Dissipation @TC=25℃ Tj Junction Temperature 12 A 80 W 150 ℃ Tstg Storage Temperature Rang
