2SD2561 - NPN Transistor

Description

Collector-Emitter Breakdown Voltage- : V(BR)CEO= 150V(Min) High DC Current Gain- : hFE= 5000( Min.) @(IC= 10A, VCE= 4V) Low Collector Saturation Voltage- : VCE(sat)= 2.5V(Max)@ (IC= 10A, IB= 10mA) Complement to Type 2SB1648 Minimum Lot-to-Lot variations for robust device per

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SD2561 Silicon NPN Transistor Sanken electric
2SD2560 Silicon NPN Transistor Sanken electric
2SD2560 SILICON POWER TRANSISTOR SavantIC
2SD2562 Silicon NPN Darlington Power Transistor Inchange Semiconductor
2SD2562 Silicon NPN Transistor Sanken

Other Datasheets by Inchange Semiconductor

Part Number Description
2SD256 Silicon NPN Power Transistor
2SD2560 NPN Transistor
2SD2500 NPN Transistor
2SD2539 NPN Transistor
2SD254 NPN Transistor

Full PDF Text Transcription

Click to expand full text

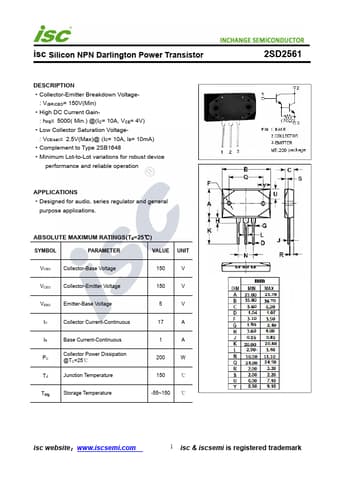

isc Silicon NPN Darlington Power Transistor DESCRIPTION ·Collector-Emitter Breakdown Voltage- : V(BR)CEO= 150V(Min) ·High DC Current Gain- : hFE= 5000( Min.) @(IC= 10A, VCE= 4V) ·Low Collector Saturation Voltage- : VCE(sat)= 2.5V(Max)@ (IC= 10A, IB= 10mA) ·Complement to Type 2SB1648 ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Designed for audio, series regulator and general purpose applications.
