2SD2500 - NPN Transistor

The 2SD2500 by INCHANGE is a NPN Transistor. Below is the official datasheet preview.

📥 Download Datasheet

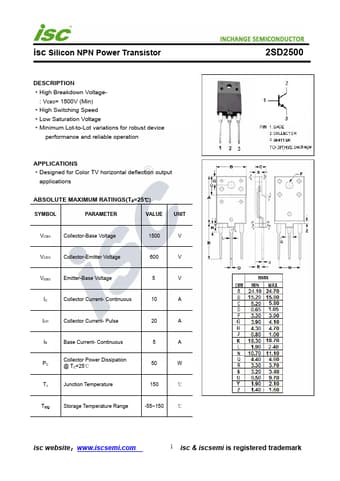

Official preview page of the 2SD2500 NPN Transistor datasheet (INCHANGE).

Datasheet Details

Part number 2SD2500
Manufacturer INCHANGE
File Size 210.92 KB
Description NPN Transistor
Datasheet download datasheet 2SD2500-INCHANGE.pdf
Additional preview pages of the 2SD2500 datasheet.

2SD2500 Product details

Description

High Breakdown Voltage- : VCBO= 1500V (Min) High Switching Speed Low Saturation Voltage Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for Color TV horizontal deflection output applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 1500 V VCEO Collector-Emitter Voltage 600 V VEBO Emitter-Base Voltage 5 V IC Collector Current- Continuous 10 A ICP
