2SD2137A - NPN Transistor

The 2SD2137A by INCHANGE is a NPN Transistor. Below is the official datasheet preview.

📥 Download Datasheet

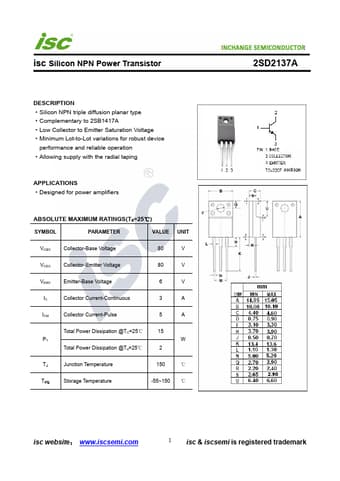

Official preview page of the 2SD2137A NPN Transistor datasheet (INCHANGE).

Datasheet Details

Part number 2SD2137A
Manufacturer INCHANGE
File Size 212.72 KB
Description NPN Transistor
Datasheet download datasheet 2SD2137A-INCHANGE.pdf
Additional preview pages of the 2SD2137A datasheet.

2SD2137A Product details

Description

Silicon NPN triple diffusion planar type Complementary to 2SB1417A Low Collector to Emitter Saturation Voltage Minimum Lot-to-Lot variations for robust device performance and reliable operation Allowing supply with the radial taping APPLICATIONS Designed for power amplifiers ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 80 V VCEO Collector-Emitter Voltage 80 V VEBO Emitter-Base Voltage 6 V IC Collector Cu
