2SD1894 - NPN Transistor

The 2SD1894 by INCHANGE is a NPN Transistor. Below is the official datasheet preview.

📥 Download Datasheet

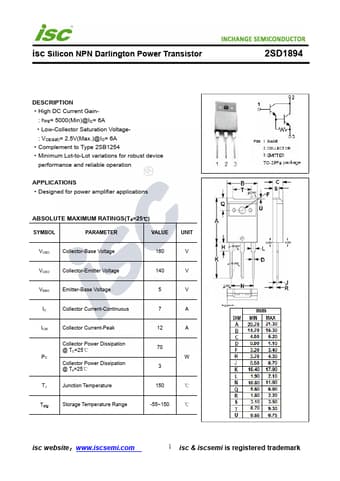

Official preview page of the 2SD1894 NPN Transistor datasheet (INCHANGE).

Datasheet Details

Part number 2SD1894
Manufacturer INCHANGE
File Size 213.86 KB
Description NPN Transistor
Datasheet download datasheet 2SD1894-INCHANGE.pdf
Additional preview pages of the 2SD1894 datasheet.

2SD1894 Product details

Description

High DC Current Gain- : hFE= 5000(Min)@IC= 6A Low-Collector Saturation Voltage- : VCE(sat)= 2.5V(Max.)@IC= 6A Complement to Type 2SB1254 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for power amplifier applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 160 V VCEO Collector-Emitter Voltage 140 V VEBO Emitter-Base Voltage 5 V IC Collector Curren
