2SD1554 - NPN Transistor

Description

High Breakdown Voltage- : VCBO= 1500V (Min) High Switching Speed Low Saturation Voltage Built-in Damper Diode Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for color TV horizontal output applications ABSOLUTE M

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SD1554 Silicon NPN Power Transistors Savantic
2SD1550 SILICON POWER TRANSISTOR SavantIC
2SD1551 SILICON POWER TRANSISTOR SavantIC
2SD1553 SILICON POWER TRANSISTOR SavantIC
2SD1555 Silicon NPN Power Transistors SaventIC

Other Datasheets by Inchange Semiconductor

Part Number Description
2SD155 NPN Transistor
2SD1550 NPN Transistor
2SD1551 NPN Transistor
2SD1552 NPN Transistor
2SD1553 NPN Transistor

Full PDF Text Transcription

Click to expand full text

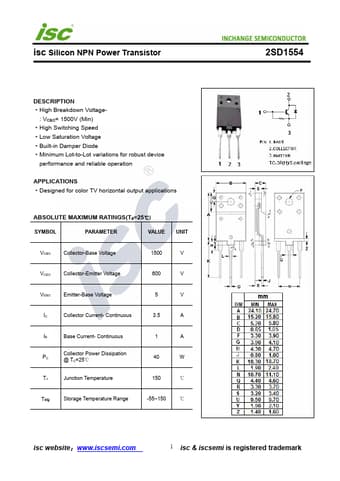

isc Silicon NPN Power Transistor 2SD1554 DESCRIPTION ·High Breakdown Voltage- : VCBO= 1500V (Min) ·High Switching Speed ·Low Saturation Voltage ·Built-in Damper Diode ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Designed for color TV horizontal output applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 1500 V VCEO Collector-Emitter Voltage 600 V VEBO Emitter-Base Voltage 5 V IC Collector Current- Continuous 3.5 A IB Base Current- Continuous PC Collector Power Dissipation @ TC=25℃ TJ Junction Temperature 1 A 40 W 150 ℃ Tstg Storage Temperature Range -55~150 ℃ isc website：www.iscsemi.
