2SD1391 - NPN Transistor

The 2SD1391 by INCHANGE is a NPN Transistor. Below is the official datasheet preview.

📥 Download Datasheet

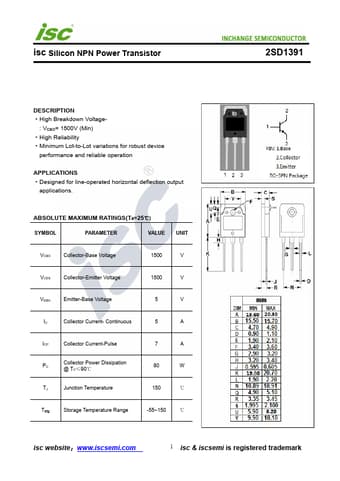

Official preview page of the 2SD1391 NPN Transistor datasheet (INCHANGE).

Datasheet Details

Part number 2SD1391
Manufacturer INCHANGE
File Size 208.10 KB
Description NPN Transistor
Datasheet download datasheet 2SD1391-INCHANGE.pdf
Additional preview pages of the 2SD1391 datasheet.

2SD1391 Product details

Description

High Breakdown Voltage- : VCBO= 1500V (Min) High Reliability Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for line-operated horizontal deflection output applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 1500 V VCES Collector-Emitter Voltage 1500 V VEBO Emitter-Base Voltage 5 V IC Collector Current- Continuous 5 A ICP Collector Current-Pulse
