2SD1060 - NPN Transistor

📥 Download Datasheet

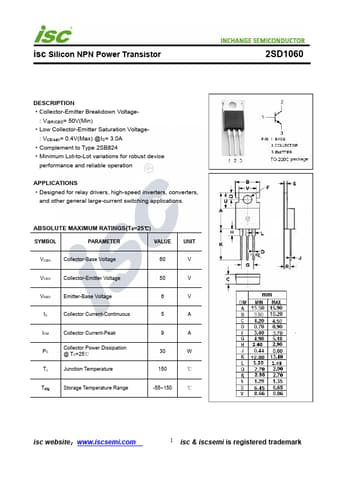

Preview of 2SD1060 PDF
datasheet Preview Page 2

Datasheet Details

Part number 2SD1060
Manufacturer INCHANGE
File Size 210.41 KB
Description NPN Transistor
Datasheet download datasheet 2SD1060-INCHANGE.pdf

2SD1060 Product details

Description

Collector-Emitter Breakdown Voltage- : V(BR)CEO= 50V(Min) Low Collector-Emitter Saturation Voltage- : VCE(sat)= 0.4V(Max) @IC= 3.0A Complement to Type 2SB824 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for relay drivers, high-speed inverters, converters, and other general large-current switching applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 60 V
