2SC4234 - NPN Transistor

Description

Collector-Emitter Sustaining Voltage- : VCEO(SUS)= 800V(Min) Fast Switching speed 100% avalanche tested Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Electronic ballasts for fluorescent lighting Switch mode power suppli

📥 Download Datasheet

📁 Similar Datasheet

  • 2SC4234 - Switching Power Transistor (Shindengen Electric Mfg.Co.Ltd)
  • 2SC4234 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC4230 - Switching Power Transistor (Shindengen Electric Mfg.Co.Ltd)
  • 2SC4231 - Switching Power Transistor (Shindengen Electric Mfg.Co.Ltd)
  • 2SC4231 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC4232 - Switching Power Transistor (Shindengen Electric Mfg.Co.Ltd)
  • 2SC4232 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC4233 - Switching Power Transistor (Shindengen Electric Mfg.Co.Ltd)
  • 2SC4233 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC4235 - Switching Power Transistor (Shindengen Electric Mfg.Co.Ltd)
Other Datasheets by INCHANGE

Full PDF Text Transcription

Click to expand full text

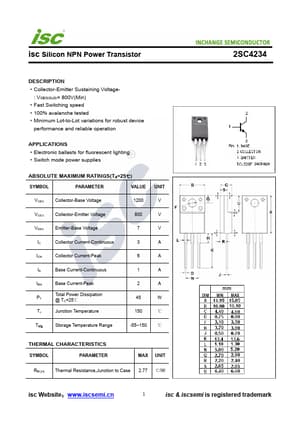

isc Silicon NPN Power Transistor INCHANGE Semiconductor 2SC4234 DESCRIPTION ·Collector-Emitter Sustaining Voltage- : VCEO(SUS)= 800V(Min) ·Fast Switching speed ·100% avalanche tested ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Electronic ballasts for fluorescent lighting ·Switch mode power supplies ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 1200 V VCEO Collector-Emitter Voltage 800 V VEBO Emitter-Base Voltage 7 V IC Collector Current-Continuous 3 A ICM Collector Current-Peak 6 A IB Base Current-Continuous 1 A IBM Base Current-Peak PT Total Power Dissipation @ TC=25℃ TJ Junction Temperature 2 A 45 W 150 ℃ Tstg Storage Temperature Range -55~150 ℃
