2SC4205 - NPN Transistor

Description

Collector-Emitter Breakdown Voltage- : V(BR)CEO= 400V(Min) High Switching Speed Wide Area of Safe Operation 100% avalanche tested Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for switching regulator and genera

📥 Download Datasheet

📁 Similar Datasheet

  • 2SC4205 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC4200 - NPN EPITAXIAL TYPE TRANSISTOR (Toshiba Semiconductor)
  • 2SC4203 - Silicon Epitaxial Planar Type Transistor (Toshiba Semiconductor)
  • 2SC4204 - NPN Epitaxial Planar Silicon Transistor (Sanyo Semicon Device)
  • 2SC4206 - TRIPLE DIFFUSED PLANER TYPE TRANSISTOR (New Jersey Semi-Conductor)
  • 2SC4207 - Silicon NPN Transistor (Toshiba Semiconductor)
  • 2SC4208 - NPN Transistor (Panasonic Semiconductor)
  • 2SC4208A - NPN Transistor (Panasonic Semiconductor)
  • 2SC4209 - Silicon NPN Epitaxial Type TRANSISTOR (Toshiba Semiconductor)
  • 2SC4209 - Silicon NPN Epitaxial Type Transistor (Kexin)
Other Datasheets by INCHANGE

Full PDF Text Transcription

Click to expand full text

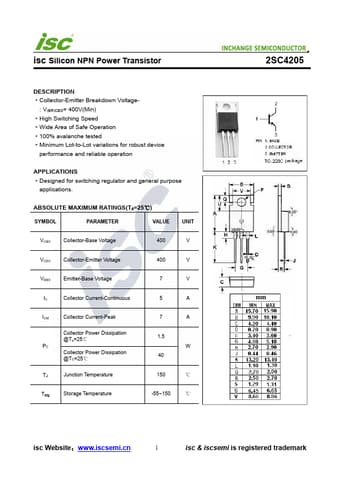

isc Silicon NPN Power Transistor INCHANGE Semiconductor 2SC4205 DESCRIPTION ·Collector-Emitter Breakdown Voltage- : V(BR)CEO= 400V(Min) ·High Switching Speed ·Wide Area of Safe Operation ·100% avalanche tested ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Designed for switching regulator and general purpose applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 400 V VCEO Collector-Emitter Voltage 400 V VEBO Emitter-Base Voltage 7 V IC Collector Current-Continuous 5 A ICM Collector Current-Peak Collector Power Dissipation @Ta=25℃ PC Collector Power Dissipation @TC=25℃ TJ Junction Temperature Tstg Storage Temperature 7 A 1.
