2SC3300 - NPN Transistor

📥 Download Datasheet

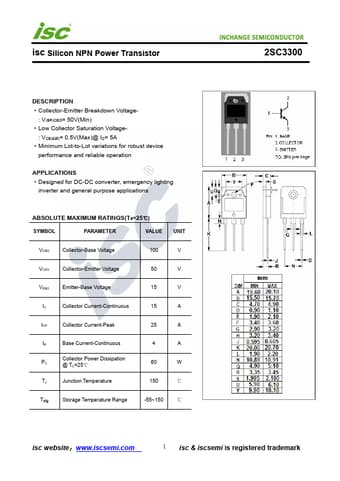

Preview of 2SC3300 PDF
datasheet Preview Page 2

Datasheet Details

Part number 2SC3300
Manufacturer INCHANGE
File Size 193.96 KB
Description NPN Transistor
Datasheet download datasheet 2SC3300-INCHANGE.pdf

2SC3300 Product details

Description

Collector-Emitter Breakdown Voltage- : V(BR)CEO= 50V(Min) Low Collector Saturation Voltage- : VCE(sat)= 0.5V(Max)@ IC= 5A Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for DC-DC converter, emergency lighting inverter and general purpose applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 100 V VCEO Collector-Emitter Voltage 50 V VEBO Emitter-Base Voltage
