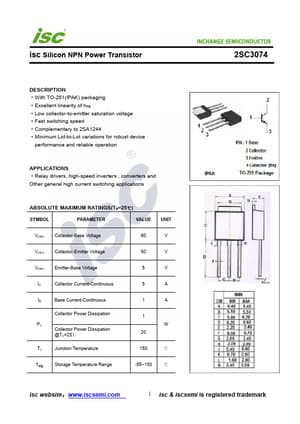

isc Silicon NPN Power Transistor
2SC3074
DESCRIPTION ·With TO-251(IPAK) packaging ·Excellent linearity of hFE ·Low collector-to-emitter saturation voltage ·Fast switching speed ·Complementary to 2SA1244 ·Minimum Lot-to-Lot variations for robust device
performance and reliable operation
APPLICATIONS ·Relay drivers, high-speed inverters , converters and Other general high current switching applications
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL
PARAMETER
VALUE
UNIT
VCBO Collector-Base Voltage
60
V
VCEO Collector-Emitter Voltage
50
V
VEBO Emitter-Base Voltage
5
V
IC
Collector Current-Continuous
5
A
IB
Base Current-Continuous
Collector Power Dissipation
PC Collector Power Dissipation @TC=25℃
TJ
Junction Temperature
1
A
1 W
20
150
℃
Tstg
Storage Temperature Range
