2SC3074 - TO-252 NPN Transistor

The 2SC3074 by INCHANGE is a TO-252 NPN Transistor. Below is the official datasheet preview.

📥 Download Datasheet

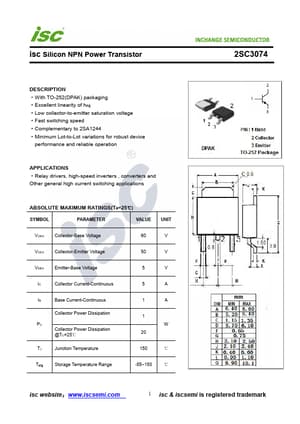

Official preview page of the 2SC3074 TO-252 NPN Transistor datasheet (INCHANGE).

Datasheet Details

Part number 2SC3074
Manufacturer INCHANGE
File Size 197.33 KB
Description TO-252 NPN Transistor
Datasheet download datasheet 2SC3074-INCHANGE.pdf
Additional preview pages of the 2SC3074 datasheet.

2SC3074 Product details

Description

With TO-252(DPAK) packaging Excellent linearity of hFE Low collector-to-emitter saturation voltage Fast switching speed Complementary to 2SA1244 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Relay drivers, high-speed inverters , converters and Other general high current switching applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 60 V VCEO Collector-Em
